Performance Insights for Cucumber Tests

Overview

Elastic Path Commerce relies on JPA managed database operations that cause performance issues due to the sheer volume. With the Performance Insights for Cucumber Tests tool, you can now discover these performance issues during early development, focusing only on the database operations.

Performance Insights for Cucumber Tests tool provides an easy and reliable way to discover performance issues during early development, focusing only on the database operations. The tool executes a set of Cucumber tests that run through various code paths to measure the number of database operations. Database operations are measured using Elastic Path’s Database Query Analyzer Tool, which is used for database profiling and investigation of the performance issues. The results of the tests are available in CSV, JSON, and HTML formats.

note

Invoke this tool from a developer’s local environment only.

Executing the Tool

Do the following to verify the performance of project customizations against the specified release version:

1. Open the terminal and change the directory to the extensions/system-tests/performance-tests/cucumber folder in your ep-commerce source code folder.

2. Run the following command:

   mvn clean install -Prun-performance-tests,compare-with-imported-metabase -Depc.version=8.3.x

   To specify a different release version, modify the -Depc.version=<EPC_VERSION> system property on the command line.

The Maven profiles for this command are:

• run-performance-tests: Runs all performance tests and creates JSON reports.
• compare-with-imported-metabase: Compares current results with the specified out of the box release version using the imported metabase data and generates a full HTML report.

Reports

The tool generates two types of reports:

• JSON reports: The run-performance-tests Maven profile generates the JSON report and contains detailed information about database calls. Use a JSON-friendly viewer with search capabilities to view the report.

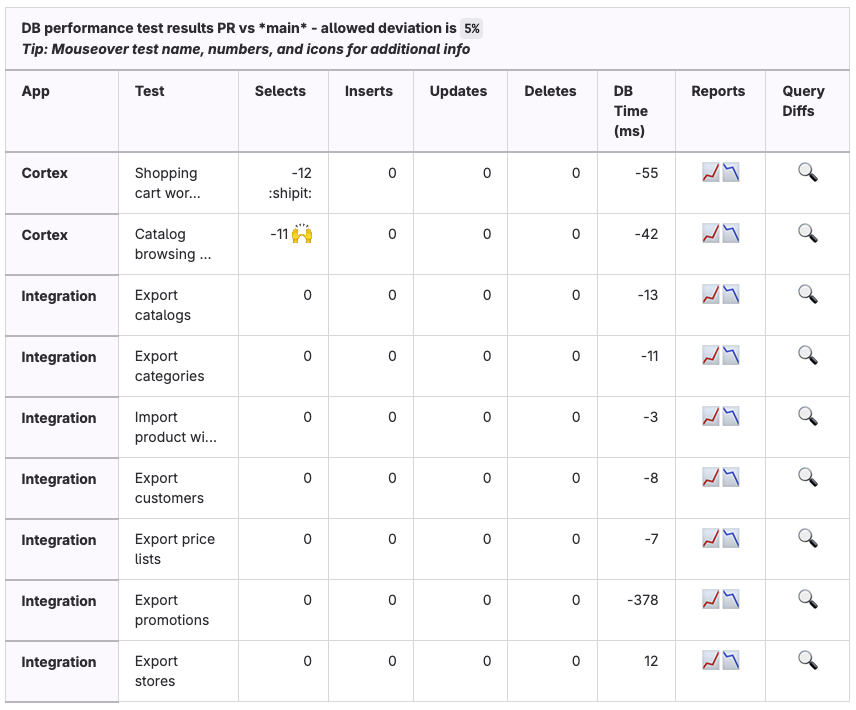

• HTML reports: The compare-with-imported-metabase Maven profile generates the HTML report that contains the summary information including current results with the specified out of the box release version using the imported metabase data.

Emojis

The legend below describes the meaning of emojis used in the HTML report cells:

Emoji	Comments
❌	Indicates a performance degradation.
＋	Indicates an increase, within an acceptable deviation (5%).
？	Indicates a new test.
📈	Link to the JSON statistics report for the local test.
📉	Link to the JSON statistics report for the baseline test.
🔍	Link to the CSV report showing differences in JPQL count between the local and baseline tests.

If the local and baseline performance results are the same, no emoji is displayed. Hover over the results to view additional information provided in the tooltips.

Adding Additional Tests

All performance tests are based on the Cucumber framework. By default, the following scenarios are supported:

• Cortex Performance Tests
  • Shopping cart workflow: This tests a typical shopping cart workflow that includes adding an item to cart, filling out the cart order details, and completing the checkout.
  • Catalog browsing workflow: This tests a typical catalog browsing workflow that includes search, navigation, facets, product associations, and price lookup.
• Integration Server Performance Tests
  • Export catalogs: This tests exporting catalogs through the Import/Export API.
  • Export categories: This tests exporting categories through the Import/Export API.
  • Import product with changeset specified: This tests importing a product through the Import/Export API.
  • Export customers: This tests exporting customers through the Import/Export API.
  • Export price lists: This tests exporting price lists through the Import/Export API.
  • Export promotions: This tests exporting promotions through the Import/Export API.
  • Export stores: This tests exporting stores through the Import/Export API.

You can add new test scenarios to the extensions/system-tests/performance-tests/cucumber folder.

Ensure that the tests that you write meet the following conditions:

• The step is clear about what is tested.
• The step asserts the expected result, such as HTTP status.
• The scenario name must not contain commas or single quotes.

note

If you rename an existing test that is already in the metabase, the history of that test is affected.

Whenever you add a new functionality or update an existing one:

1. Run all tests, without changing the code, and check for variability in all database counters.
2. Ensure that the tests produce a constant number per counter.
3. In case of variability, identify and rectify the the root cause and repeat the tests until you get the constant counter.
